High Capacity Servo Hydraulic UTM



         LF Series 1000kN                      UTM Series 200 to 3000kN                   TTM Series up to 5000kN

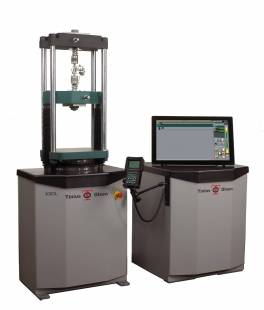

LF and LFSV Servohydraulic Machines up to 1000 kN

The LF & LFSV Series are compact and modular designed servohydraulic actuated test systems.

The actuator is integrated in the machine’s base, providing a reduced over-all machine height.
They feature compact design is especially suitable for laboratories with reduced ceiling heights. These single work space machines allow carrying out tensile-, compression- or bending tests.
Accuracy according to ISO 7500-1 etc., class 0.5 with high resolution and synchronized measurement on all channels.

Key Features
Single workspace-design provides high load frame stiffness and ergonomically working height
Series LF with manually clamped and movable upper crosshead
Series LFSV with hydraulic movable upper crosshead
Rigid machine frame construction provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
Double-acting (no plunger) actuator in Servo-Quality mounted in the machine base
Polished and hard chromium-plated columns
Leather bellows over a complete piston rod protect piston rod from dust, dirt and scale
Anti-rotation system for the actuator prevents the natural tendency of the actuator to rotate
Precision tension / compression rated strain gauge load cell mounted on upper crosshead
Optional alignment fixture can be mounted between crosshead and load cell
High resolution digital displacement transducer
Servovalve with manifold attached directly on acuator
Machine supplied with anti-shock pads below the machine to effectively reduce and isolate vibrations, noise, as well as elastic storage decoupling
Anchors for fixation on laboratories floor
Durable structured coating (or paint)
Bolts for machine lifting
The machine is free-standing on shock absorbers, requiring no special foundations

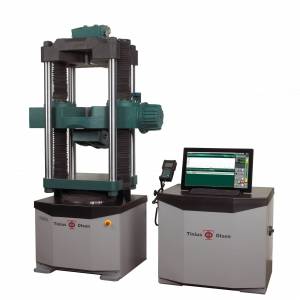

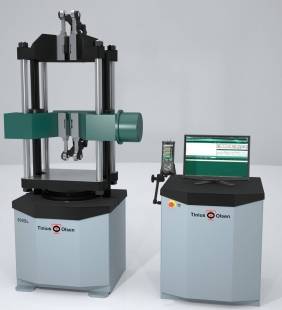

UTM Servohydraulic Machines up to 3000 kN

In ergonomic dual-test-space design allowing, tension, compression and bending tests to be performed without the need of fixtures
removal from a load frame.

Key Features
Rigid 4-column construction
For tensile tests in upper test space
For compression/bending tests in upper test space
Two spindles for test space adjustments hrough positioning of lower crosshead
Chrome plated columns for easy cleaning and longest life
Anti-rotation system for the actuator
Piston stroke limit-switch
With integrated precision electronic oad cell for direct force measurement
With high resolution digital displacment transducer
Including hardened compression plates in the lower test space
Including bending testing device, which needs to be mounted on to the lower test space
Available Extra Height Tension space for strand tests

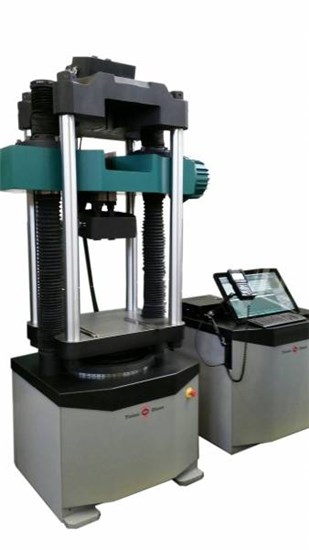

TTM Servohydraulic Machine up to 5000kN

The TTM® Testing Machines are rugged, durable and highly reliable designed Systems, are often the best choice for high capacity and
high-strength materials testing.

These workhorses are available as 2-column construction in the load range up to 1000 kN and 4-column design for force capacities ranging from 600 kN to 5000 kN.
The TTM® series perform digital, servo-controlled closed loop hydraulic actuation controls in load, strain or displacement mode. These Test
Systems are compatible with a wide range of grips and fixtures suitable for testing metals or casted sheets, bars or tubes, fasteners, wires,
cables or chains.
The TTM® series features a long piston stroke for universal testing without changing the crosshead adjustment. The actuator is integrated on upper crosshead providing very ergonomic and unchanged height of the lower grip.

Key Features
Single workspace-design provides high load frame stiffness and ergonomic working height
Rigid machine frame construction provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
Double acting (no plunger) actuator in Servo-Quality mounted on upper crosshead
Polished and hard chromium-plated columns
Movable upper crosshead with manual clamping to adjust optimum grip separation in relation to shortest and longest samples, also sample deformation
Long piston stroke for universal testing without changing the crosshead position, even when testing in conditions
Leather bellows over a complete piston rod protect piston rod from dust, dirt and scale
Anti-rotation system for the actuator prevents the natural tendency of the actuator to rotate
Precision tension / compression rated strain gauge load cell mounted between lower grip and base platen
High resolution digital displacement transducer
Servovalve with manifold attached directly on actuator
Machine is supplied with anti-shock pads below the machine that effectively reduce and isolate vibrations, noise, as well as elastic storage decoupling
Supplied with anchors for fixation on laboratories floor
Durable structured coating (or paint)
Bolts for machine lifting
The machine is free-standing on shock absorbers, requiring no special foundations
Ergonomic working height with unchanged height of lower grip allows an easy sample insertion
